Vectraplex Portable ECG System with 15-Lead Capability
$12.400Original price was: $12.400.$6.080Current price is: $6.080.
Displays a Cardiac Electrical Biomarker (CEB), Vectraplex AMI index, for the real-time detection of ECG changes suggestive of an Acute Myocardial Infarction (AMI, heart attack)
Derives a total of 15 ECG leads (12-lead ECG, XYZ vector cardiogram leads and vector loops) from the placement of only 5 electrodes
Displays results within seconds and provides continuous real-time status updates automatically
Incorporates a patient data base
Report editor feature allows inclusion of additional physician diagnoses
Capability of e-mailing patient data
3-page printout with the appropriate labeling of all leads, thus reducing the risk of mislabeling
Vectraplex Portable ECG System with 15-Lead Capability
The Vectraplex Portable ECG System, developed by VectraCor, offers a unique capability to derive a 15-lead electrocardiogram (ECG) using only five electrodes. It is a compact, USB-based device that connects to a Windows PC or tablet, making it suitable for portable and emergency use.
Key features
Derived 15-lead ECG: The system uses five electrodes to mathematically derive a full 15-lead report, which includes the standard 12-lead ECG along with vectorcardiogram/XYZ leads and vector loops.
Optional 12-lead ECG: The device can also be used with the standard 10-electrode placement to measure a conventional 12-lead ECG.
Cardiac Electrical Biomarker (CEB): The system’s proprietary technology displays a color-coded index number (the CEB) that can help detect ECG changes suggestive of an acute myocardial infarction (AMI or heart attack).
Connectivity: It offers the capability to send patient data and reports via email. The system is also compatible with Electronic Medical Records (EMR).
Compact and portable: The small size of the device allows it to be used in various settings, including homes, emergency departments, and clinics.

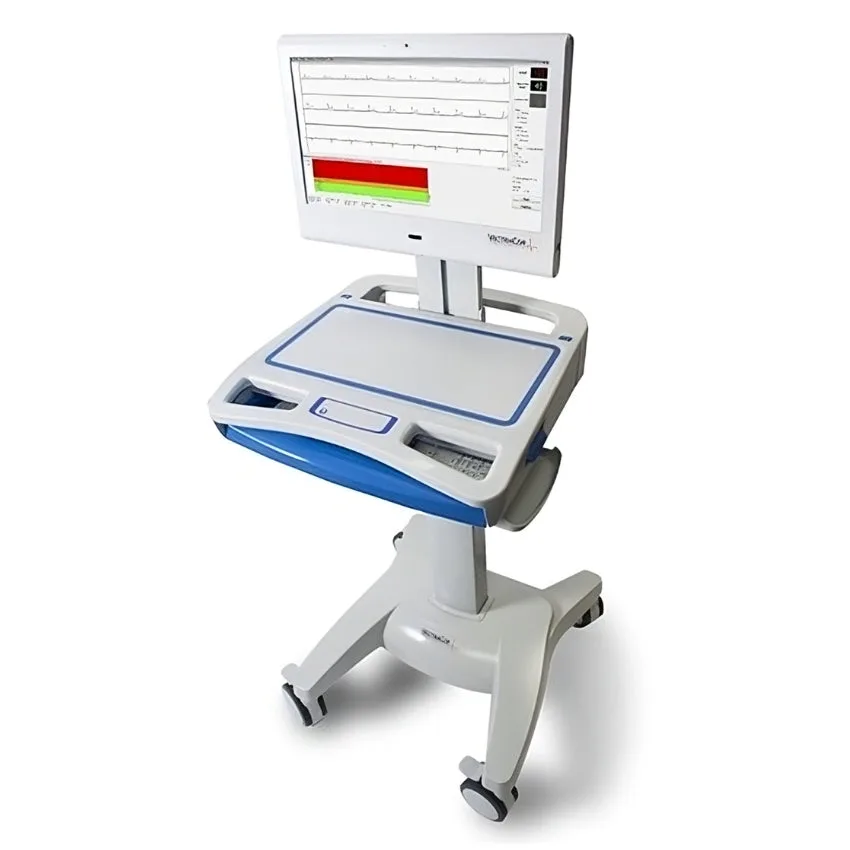

Computer integration: The core of the system is a USB-based cable that interfaces with dedicated software on a Windows computer. Hospital packages may include an integrated, anti-microbial touchscreen computer and rolling stand.
Vectraplex Portable ECG System with 15-Lead Capability
Hub Weight
250-335 grams
Hub Length
3.3″
Hub Width
3.6″
Hub Height
.8″
Patient Limb Leads
1 meter
Patient’s Chest Leads
0.6 meter
Patient Leads
12-Lead Cable
Electrode Connection
4 mm Banana plug with “snap” or “tab” connectors
Gain Sensitivity
5, 10, 20 mm/mV
Speed
12.5, 25 and 50 mm/s
Input Range
±6 mV
Acquisition Sample Rate
1000 samples/sec. (Compressed to 500 Hz with peak picking and averaging algorithm)
Heart Rate Range
30 – 170 bpm
Frequency Response
0.05 – 175 Hz ±3dB
Defibrillation Protection
Patient leads are isolated from system and operator, with 4kV protection
Common Mode Rejection
-60dB (minimum)
Safety Standards
Complies with AAMI EC11, EN60601-1, EN60601-2, EN60601-2-25
Leads Off Indicators
Connection status for each lead is shown on Acquisition screen
Power Source
PC, powered from USB interface
Supply Voltage
4-16 V DC
Supply Current
< 17 mA DC
Operating Temperature
0-40°C
Storage Conditions
-20-70°C
Humidity
85% Max. (non-condensing)
