Enhance your GNSS positional accuracy with the latest in laser engineering. The LZ-T5 performs in a variety of working environments, including the most challenging job-site conditions. Ideal for any task, the LZ-T5 can function as a single Millimeter GPS solution for paving, grading and grade checking operations. Increase your productivity by using Millimeter GPS with the LZ-T5 laser Transmitter. Adding the LZ-T5 to your toolbox will eliminate the cost and time of setting up string lines and placing hubs. The industry requires precision paving and grading operations and the LZ-T5 is ready to meet those needs.

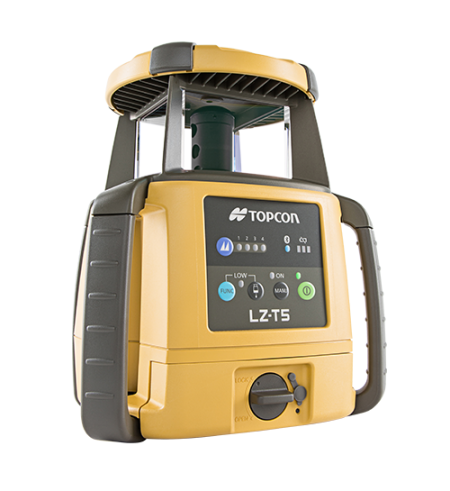

Features Topcon LZ-T5 Laser Transmitters
Large working range up to 8000ft horizontal and 132ft vertical
User friendly design for “on the go” grade management
Control multiple machines and rovers
Finish grade 24/7 with minimal satellite coverage
Extended battery life up to 18 hours
Operating range
Zone radius
300 m (985 ft) *1
Zone width
+/-10° (5 m to 30 m), +/-5 m (30 m to 300 m)*
General accuracy
Height accuracy
5 mm + 50 ppm X D (D: Horizontal distance [mm])*
*When used in combination with the PZS-1
Channels
4
Laser
Light source
Laser diode (invisible laser)
Laser class
Class 1
Auto leveling section
Auto leveling range
+/-3°
Sensitivity of circular level
10 ft / 2 mm
Rotational speeds
600 rpm
Plumb beam
Light source
Laser diode (visible laser)
Laser class
Class 2
Communication section
Serial
One port, in compliance with RS-232C
Bluetooth
One port, v2.1 + EDR
Range
10 m (in controller communication)
Power source section
Standard battery
Ni-MH battery pack BT-67Q
Charging time
Approx. 7 hours (using with Ad-11D/at +20°C (+68°F))
Operating time
Approx. 18 hours (at +20°C (+68°F))
Range of charging temperature
10 to 40°C
General
Protection against water and dust
IP66 (based on the standard IEC60529)
Operating temperature
-20°C to +50°C (-4°F to +122°F)
Storable temperature range
-30°C to +60°C (-22°F to +140°F)
Dimensions
232(W) x 192(D) x 280(H) mm [9.1(W) x 7.8(D) x 11.0(H) in]
Weight
4.3 kg (9.5 lbs) (Ni-MH battery type: including BT-67Q)
