Description

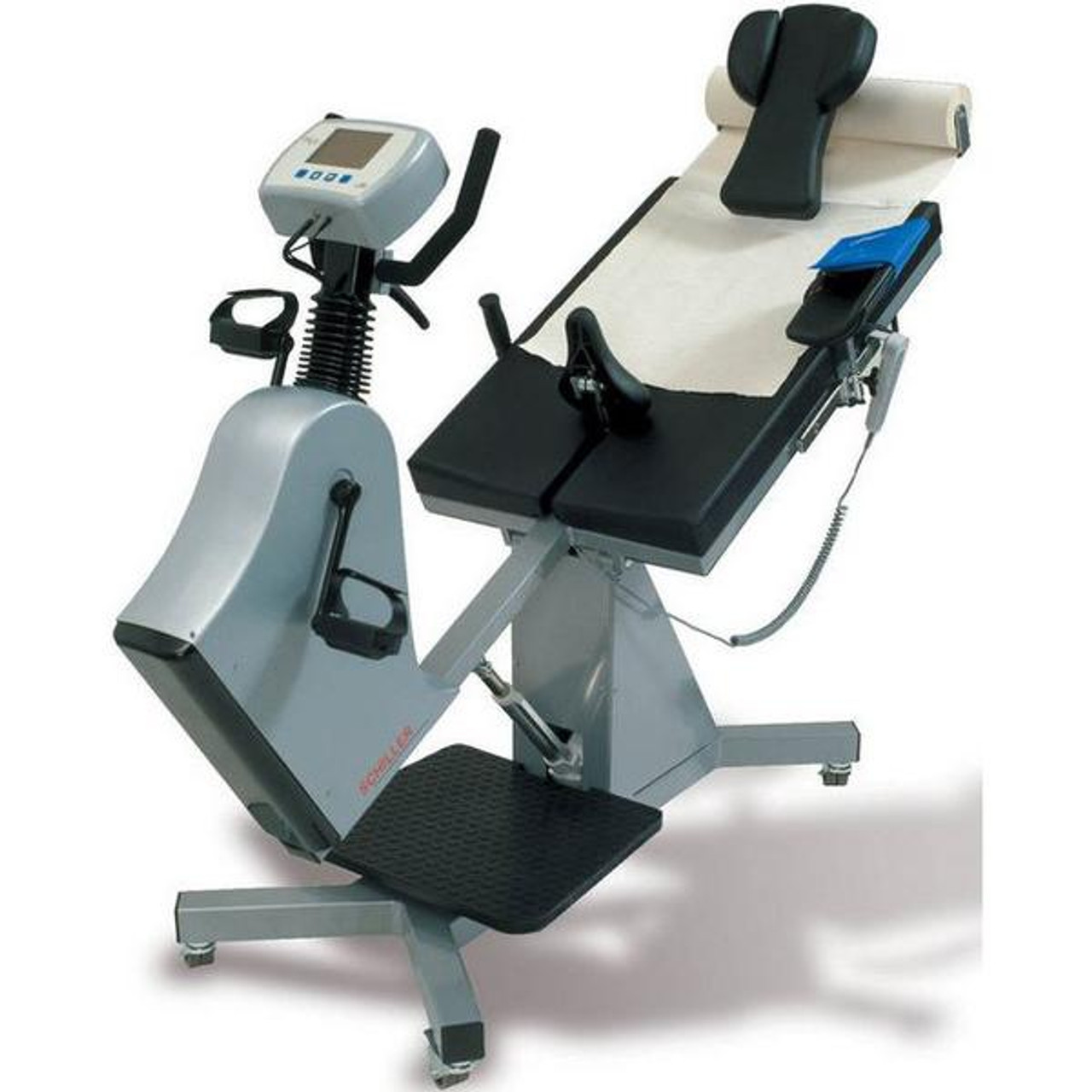

Schiller ERG 911 Couch Ergometer (2.210101)

The Schiller ERG 911 Couch Ergometer is a medical safety variable couch ergometer, developed for the cardiology sector, where special safety requirements have to be met. With easily adjustable positioning, this new couch ergometer has been designed for exercise testing, cardiac catheter tests, and rehabilitation. Intended for use with high-risk, elderly, or physically handicapped patients.

• • • Medical safety-couch ergometer bicycle ERG 911 S/L.
    • Compatible with all Schiller exercise ECG work stations.
    • Adjustment of the reclining seat, saddle, and headrest by remote control.
    • Large, rotating LCD (10 cm x 7.5 cm).
    • Safe and stable steel/aluminum construction for patients weighing up to 160 kg.
    • Automatic computer control via galvanically isolated RS-232 interface.
    • Load range 1 to 999 watt (independent of revolutions per minute); 5 to 20 watt dependent of revolutions per minute.
    • 115/230 VAC – Please specify when ordering, 50/60Hz.

Specifications Schiller ERG 911 Couch Ergometer (2.210101)

Schiller ERG 911 Couch Ergometer (2.210101)

TheSchiller ERG 911 Couch Ergometer (2.210101) is a medical safety variable couch ergometer designed for cardiology applications. It is used for exercise testing, cardiac catheter tests, and rehabilitation, especially for high-risk, elderly, or physically handicapped patients.

Specifications

Application: Medical safety couch ergometer developed for use in the cardiology sector.

Patient suitability: Intended for high-risk, elderly, or physically handicapped patients undergoing cardiovascular diagnostics.

Operation: Features dual operational modes, including remote operation via an ECG or PC, or standalone operation with programmable protocols.

Adjustments: Offers electrically adjustable reclining positions (from 0° to 45°) for the seat and headrest.

Max patient weight: Built with a sturdy steel/aluminum construction that supports patients weighing up to 160 kg (353 lbs).

Interface: Includes a large, rotating LCD (10 cm x 7.5 cm) display.
Connectivity:

Compatible with all Schiller exercise ECG work stations via a galvanically isolated RS-232 interface. Bluetooth connectivity is also available.

Performance: Features a nearly silent, maintenance-free belt drive mechanism.

Load range: Provides a load range of 1 to 999 watts, independent of revolutions per minute.
