• Protection against harsh environments – Completely sealed measuring units (IP67) to withstand dust and water
• Ultra-compact measuring units – Use in extremely narrow spaces
• Robust carrying case – Excellent protection, convenient transport and wireless in-case charging
• Accessories – Extensive range of accessories is available.

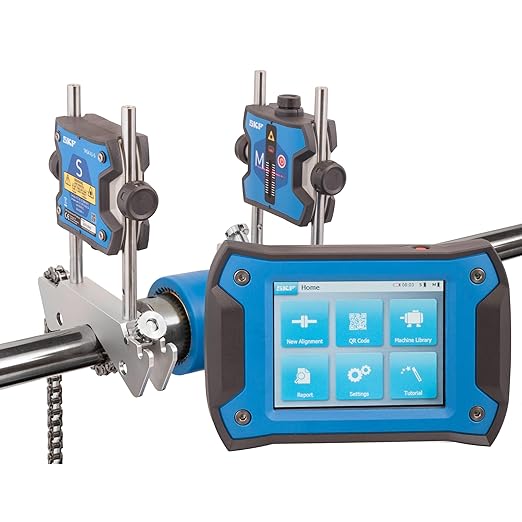

Key Features New SKF TKSA 71 Laser Shaft Alignment Tool

Intuitive Applications: The tool uses six software applications tailored to various alignment tasks, including horizontal and vertical shafts, spacer shafts, and machine assembly.

Flexible Measurement: In addition to the traditional 180° measurement method, the tool can initiate measurements from any position. Automatic measurement mode requires only a minimum shaft rotation of 40°.

Compact Measurement Unit: Its small (52 × 64 × 33 mm) wireless measurement unit enables alignment in very tight spaces.

Wireless Charging: The measuring unit comes with a wireless charging pad. A quick 10-minute charge provides up to one hour of use, while a full charge allows for up to 8 hours of operation.

Durable: The measuring unit and its carrying case are IP67-rated, providing protection against dust and water in harsh industrial environments.

Superior Measurement Range: The system can measure at distances of up to 10 meters.

3D Live View: Provides a live 3D view of the machine, helping to visualize necessary adjustments.

Available Models
The SKF TKSA 71 is available in several models, each offering a variety of accessories to meet different needs:

SKF TKSA 71: Basic model with standard accessories. Comes with a rugged carrying case.

SKF TKSA 71/PRO: A more complete model, including additional advanced accessories such as a sliding bracket and magnetic base. Comes with a larger carrying case.

SKF TKSA 71D and SKF TKSA 71D/PRO: Models that include a dedicated display device for use in industrial environments, with pre-installed applications.
