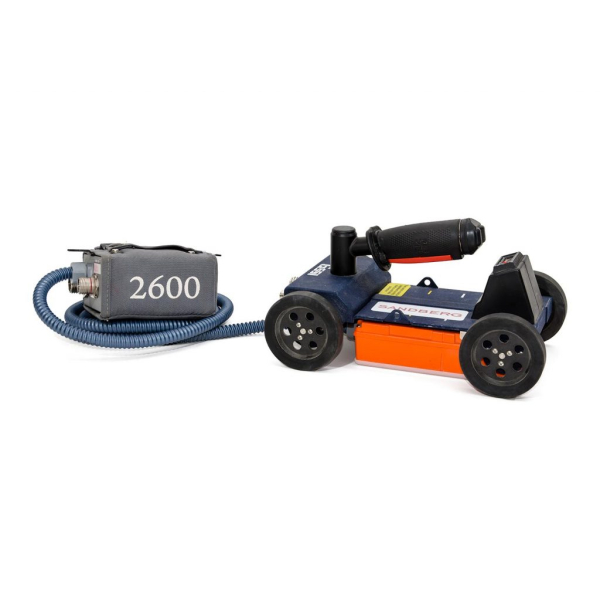

New GSSI 2.6 GHz High Resolution Concrete Antenna

New GSSI 2.6 GHz High Resolution Concrete Antenna

Original price was: $2.990.Current price is: $1.415.

The 2600 MHz antenna is an ultra-high resolution antenna used to inspect concrete structures and to locate embedded rebar, post tension cables and conduits. This antenna is compatible with the SIR 4000 and SIR 30 control units.

Category: Tag:

Description

New GSSI 2.6 GHz High Resolution Concrete Antenna

GSSI 2600 MHZ – HIGH RESOLUTION ANTENNA

The GSSI 2600 MHz antenna is an ultra-high resolution antenna used to inspect concrete structures and to locate embedded rebar, post tension cables and conduits. This antenna is compatible with the SIR-4000 and SIR-30 control units.

SMART ANTENNA

The Model 52600S is a 2600 MHz “smart” antenna. This antenna has a special chip in it that will work with the SIR-30 and SIR-4000 (not the SIR-3000). This chip will identify the antenna to the SIR-system control unit so that the controller will be able to automatically load up the correct default settings. The 52600S will function with a SIR-3000, SIR-20 or any of GSSI’s previous controllers, but the user will need to manually set the collection parameters on the SIR-system. Collection parameters are listed below.

Specifications :

CENTER FREQUENCY 2600 MHz
DEPTH RANGE 0-40 cm (0-12 in)
WEIGHT 1.8 kg (4 lbs.)
DIMENSIONS 3.8x10x16.5 cm (1.5x4x6.5 in)
MODEL 52600S



New GSSI 2.6 GHz High Resolution Concrete Antenna

The GSSI 2.6 GHz (2600 MHz) High Resolution Concrete Antenna is an ultra-high frequency ground penetrating radar (GPR) tool used to inspect concrete structures. It is specifically designed to locate embedded targets in concrete with high precision, but trades depth penetration for this increased resolution.
Key applications
  • Locating rebar: Accurately identifies the location and depth of steel reinforcement bars.
  • Inspecting post-tension cables: Pinpoints the position of post-tensioning cables within the concrete.
  • Mapping conduits: Detects both PVC and metallic conduits.
  • Detecting voids: Can be used to find voids or honeycomb areas within concrete structures.
Technical specifications
  • Center frequency: 2600 MHz.
  • Depth range: 0 to 40 centimeters (0–12 inches), with higher resolution at the expense of deeper penetration compared to lower-frequency antennas.
  • Weight: 1.8 kg (4 lbs).
  • Dimensions: 3.8 x 10 x 16.5 cm (1.5 x 4 x 6.5 in).
  • Model: 52600S.
  • Compatibility: The 52600S “smart” antenna is compatible with GSSI’s SIR 4000 and SIR 30 control units.
