Sale!

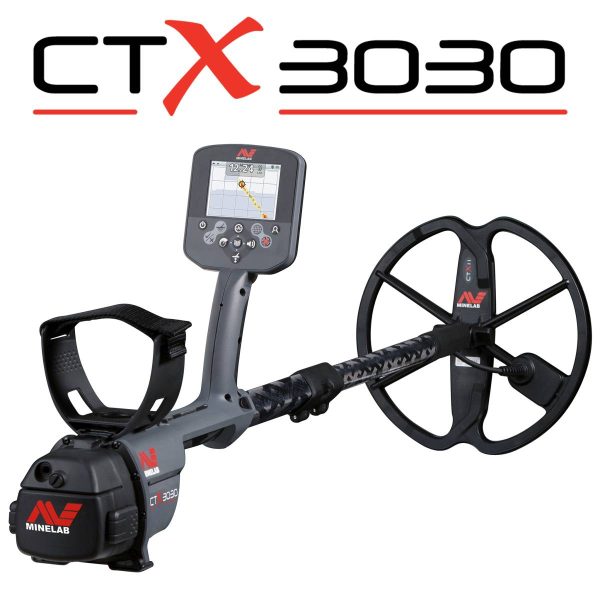

Minelab CTX 3030 Metal Detector
Minelab CTX 3030 Metal Detector - Image 2

Minelab CTX 3030 Metal Detector

Original price was: $3.930.Current price is: $1.883.

FBS 2 combines Minelab’s FBS multiple frequency rectangular-wave transmission (1.5 kHz –100 kHz) with advanced digital coil-to-detector communications. The precisely calibrated smart coils and detector electronics allow advanced signal analysis for more accurate detection.

Category: Tag:

Description

Minelab CTX 3030 Metal Detector

The waterproof all-terrain CTX 3030 is the ultimate high performance treasure detector. Discover more historical treasures with the most accurate target identification available.

Minelab CTX 3030 Metal Detector

TECHNOLOGIES

FBS 2

FBS 2 combines Minelab’s FBS multiple frequency rectangular-wave transmission (1.5 kHz –100 kHz) with advanced digital coil-to-detector communications. The precisely calibrated smart coils and detector electronics allow advanced signal analysis for more accurate detection.

SMARTFIND 2

Smartfind 2 greatly enhances Minelab’s FeCo Discrimination to analyse and display a target’s Ferrous (Fe) and Conductive (Co) properties on a full colour LCD.

Ultra-fast microcontrollers carry out digital signal processing to provide significantly improved target separation.

GPSI

GPSi uses the high performance and flexibility of a u-blox GPS positioning engine to seamlessly integrate location and time data with detector settings and target information. This creates WayPoint, FindPoint and GeoHunt files that are compatible with XChange 2.

WI-STREAM

Wi-Stream uses efficient low-power digital audio transmission to achieve no perceivable audio time lag (<10 ms) between the Wi-Stream enabled detector and the WM Wireless Module. With multiple channel capability, this wireless technology provides reliable communication with maximum sound quality.

Wi-Stream technology is offered in a range of Minelab detectors, however the WM modules are not cross compatible between detectors.

WM module and detector compatibility:

WM 12 – GPZ 7000
WM 10 – CTX 3030
WM 08 – EQUINOX Series

TECH SPECS

Application : Coin, Relic, Jewellery & Beach (waterproof 10ft)
Technology : FBS 2, Smartfind 2, GPSi, Wi-Stream
Frequency/Transmission : Multiple frequencies: 1.5 – 100kHz
Coil (standard) : 11-inch waterproof Double-D smart coil
Audio Output : Built-in speaker, standard ¼-inch non-waterproof socket, custom waterproof socket (Minelab accessory headphones only)
Headphones Supplied : KOSS UR30 (100 ohm) supplied with detector (non-waterproof )

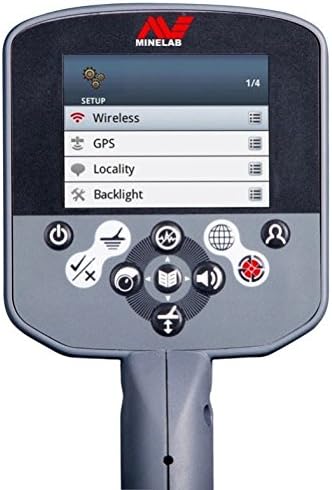

Visual Display : Full colour LCD with backlight and adjustable brightness (1–10)
Backlight : Yes
Product ID : 88961
USB Connectivity : USB interface for XChange 2 PC software
Memory : Settings saved automatically while detecting and remain until changed or reset
Depth Indication : Accurate gauge active in normal detecting and Pinpoint mode
Detect Modes : 10 fully customisable, including 5 preset (Coins, Beach, Relic, Silver & High Trash)
Discrimination : Smartfind 2TM 2 dimensional colour discrimination: Ferrous 35, Conductivity 50 – 20 fully customisable discrimination patterns (2 per Search Mode)
Timings : –
Audio tone : Customisable Tone ID Profiles – 1, 2 ferrous (Fe), 2 conductive (Co), 4 Fe, 4 Co, 35 Fe, 50 Co or Combined
Audio Type : Normal, Long, Smooth & Pitch Hold
Ground Balance : Auto Compensation and Auto Ground Balance
Ground Balance Type : –
Trash Density : –
Pinpoint : Non-motion with modulated audio and visual crosshair on LCD, 2 modes: normal and sizing
Sensitivity Adjust : Auto and Manual (1–30)
Tune / Noise Cancel : Manual & Automatic (11 channels)
Threshold : Level adjustment (1–50), Pitch adjustment (1–30)
Target Volume Adjust : Limit & Gain (1 to 30)
Battery : Li-ion pack with fast charger. 12 V car adapter supplied with Standard Pack only
Low battery alert : Audio & visual indication.
Length : Min 37 in. (940 mm) – Max 55.3 in. (1405 mm)
Weight : 5.20 lbs (2.36 kgs) including Li-ion battery pack
Warranty : 3 years control box & coil
