GSSI StructureScan Mini LT GPR

Original price was: $8.178.Current price is: $4.039.

First-in-Class Capabilities

Incorporated into the design is an integrated laser positioning system, located on the front and sides of the unit to help users accurately mark targets. It also provides four-wheel drive to ensure efficient and accurate data collection.

Categories: Ground Penetrating Radar, Surveying Equipment Tag: GSSI

Description
Reviews (0)

Description

GSSI StructureScan Mini LT GPR

GSSI StructureScan Mini LT, Entry Level GPR System for Concrete Inspection is an entry Level GPR System for Concrete Inspection. All-in-one GPR system for concrete inspection.

This handheld system locates rebar, conduits, post-tension cables, voids and can be used to determine concrete slab thickness in real-time. Typically used to:

Locate metallic and non-metallic targets in walls
Inspect bridges, monuments, walls, towers, tunnels, balconies, garages, decks
Map relative concrete condition for rehab planning
Measure slab thickness
Void location

GSSI StructureScan Mini LT GPR

The StructureScan Mini LT is an all-in-one concrete inspection tool – antenna, positioning system and control unit combo.

Concrete Scanning Made Easy

The StructureScan Mini LT is compact and lightweight – weighing only 1.6 kg (3.6 lbs.), making it easy to use on the ground or for above-the-head survey locations.

Enhanced Data Visualization

The StructureScan Mini includes two modes of operation; 2D mode for real-time locating, and 3D mode for x-ray like images of the concrete. This system also incorporates two types of automatic target detection to aid users in interpreting data.

First-in-Class Capabilities

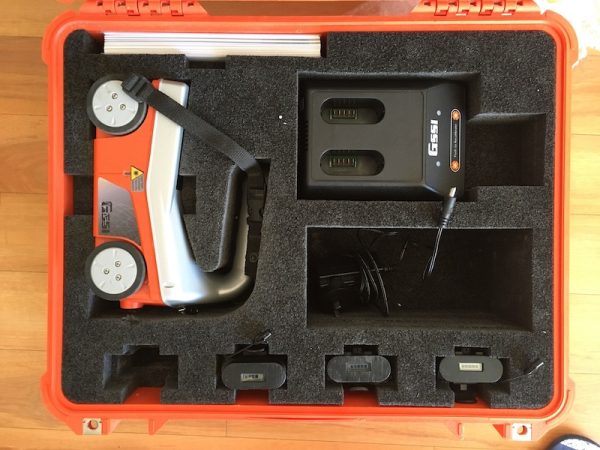

Includes;

StructureScan Mini LT
Lithium-ion batteries (2)
Dual-bay battery charger
Hand strap
Transit case
Quick Start Guide
Data collection grids
2-year warranty
RADAN 7 Software License

Specifications

Memory	Based on SD card size, default is 2 GB
Display	5.7”, full-color
Post-processing	On-screen or via GSSI software (optional)
Battery	2.5 hour run-time
Available Ports	SD card, USB port
Environmental	Water-resistant and dust proof (IP-65 rating)
Languages	English, Spanish, French, German, Korean and Japanese
Weight	1.6 kg (3.6 lbs)
