Description

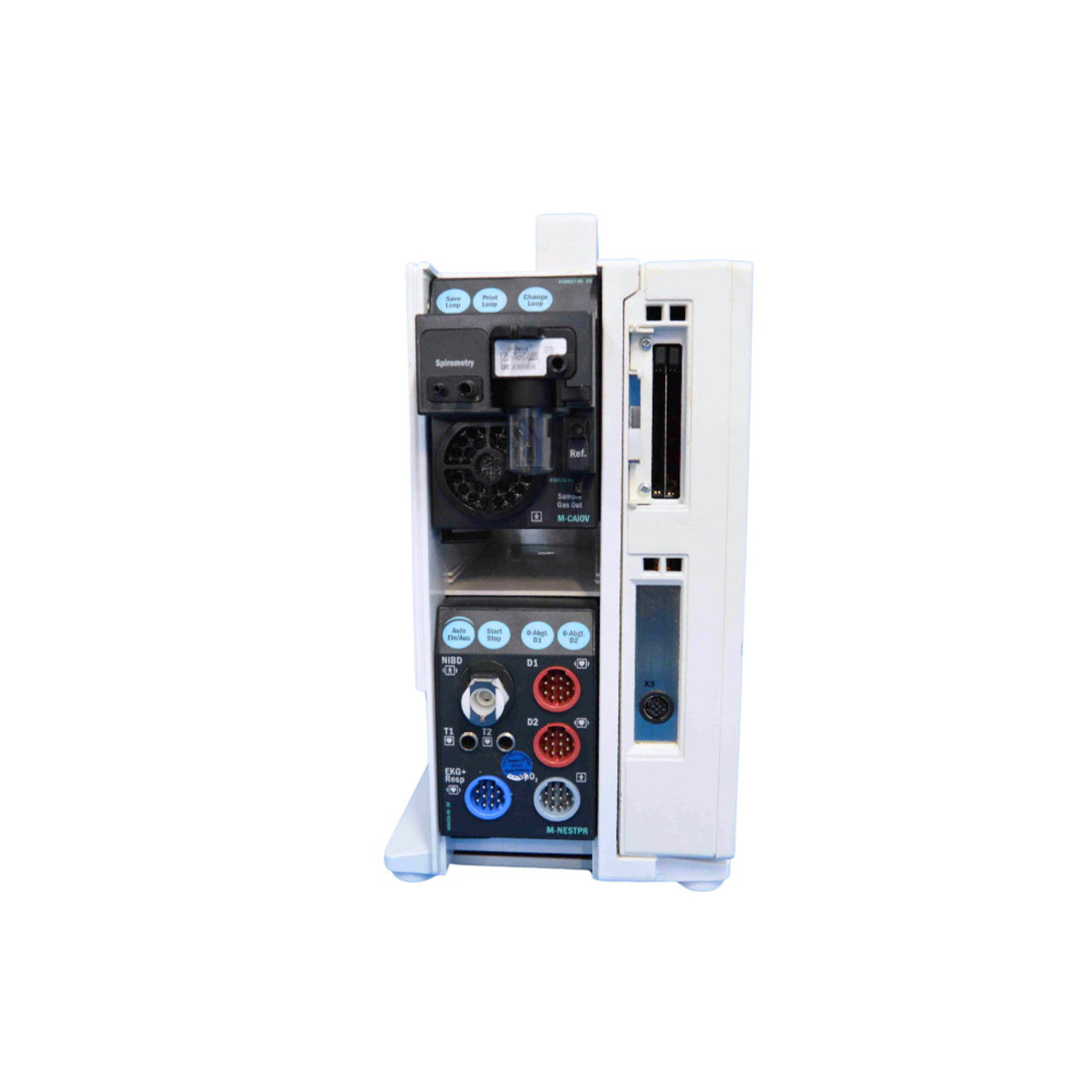

GE Datex-Ohmeda S-5 Anesthesia Monitor

• • • Excellent condition and certified to proper operating specifications.
    • Anesthesia care-oriented user interface.
    • Connector for Datex-Ohmeda S/5 Device interfacing solution.
    • Optional extended Arrhythmia Analysis.
    • The Datex-Ohmeda S/5 Monitor gives you the time and freedom to monitor your patient effectively.
    • It offers all you need for effortless patient monitoring in the OR and beyond – a full range of monitoring parameters
    • ECG, SpO2, NIBP, temperature, CO2, and 5 agent gas analysis.

Warranty: 1 Year – Parts and Labor.

 Not Included

*Available Upon Request*

Features : GE Datex-Ohmeda S-5 Anesthesia Monitor

• • • Central unit and displays are physically separate components.
    • Four display options with integrated monitor controls: 15″ or 17″ high resolution color video display at 10.4″ or 15″ flat panel color LCD display.
    • User configurable display layout and colors.
    • Support for up to eight Waveforms on screen.
    • Support for user configurable second and third screen with different waveforms and numerical information.
    • Anesthesia dedicated Alarm System.
    • Alarms display and adjustment page.
    • 10-minute graphical mini trends referenced to set alarm limits.
    • Automatic alarm limits functions.
    • Six user configurable modes and special Cardiac Bypass Mode.
    • 24 hour Numerical and Graphical trends.
    • Split screen capability to show ST, Spirometry Loop, EEG, EP, or Mini Trends permanently.
    • Four user-configurable Graphical and Numerical trends.
    • Trend cursor in both Graphical and Numerical trends.
    • Waveform snapshots to store and recall waveform samples.
    • Help functions.
    • Open software and hardware architecture.
    • Easy intersection/removal of plug-in parameter modules without interrupting other monitoring.

The GE Datex-Ohmeda S-5 Anesthesia Monitor is a flexible, modular, multi-parameter monitoring system for anesthesia, configurable with various modules to measure vital signs such as ECG, SpO2, CO2, NIBP, and temperature. It is designed for monitoring hemodynamics, respiration, and neurophysiology of patients in hospitals and surgical centers, with a large display for easy viewing and a sophisticated alarm system.
