Description

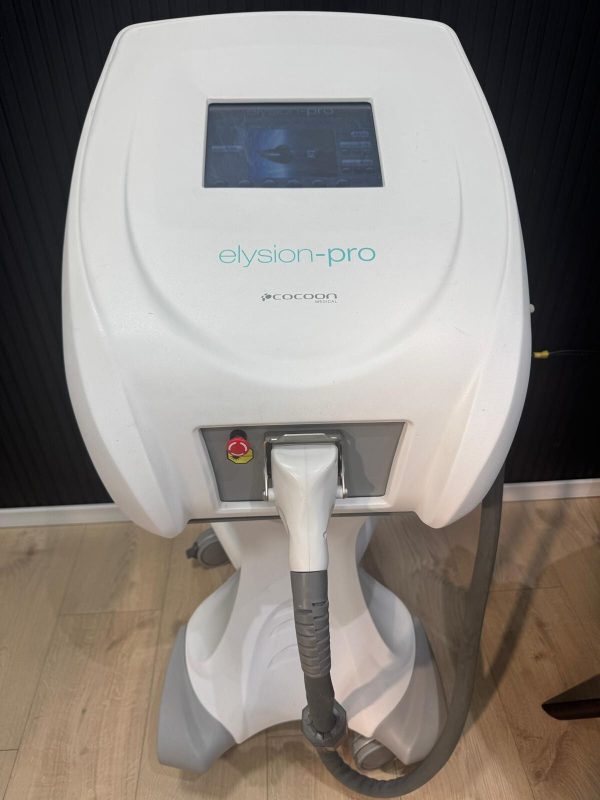

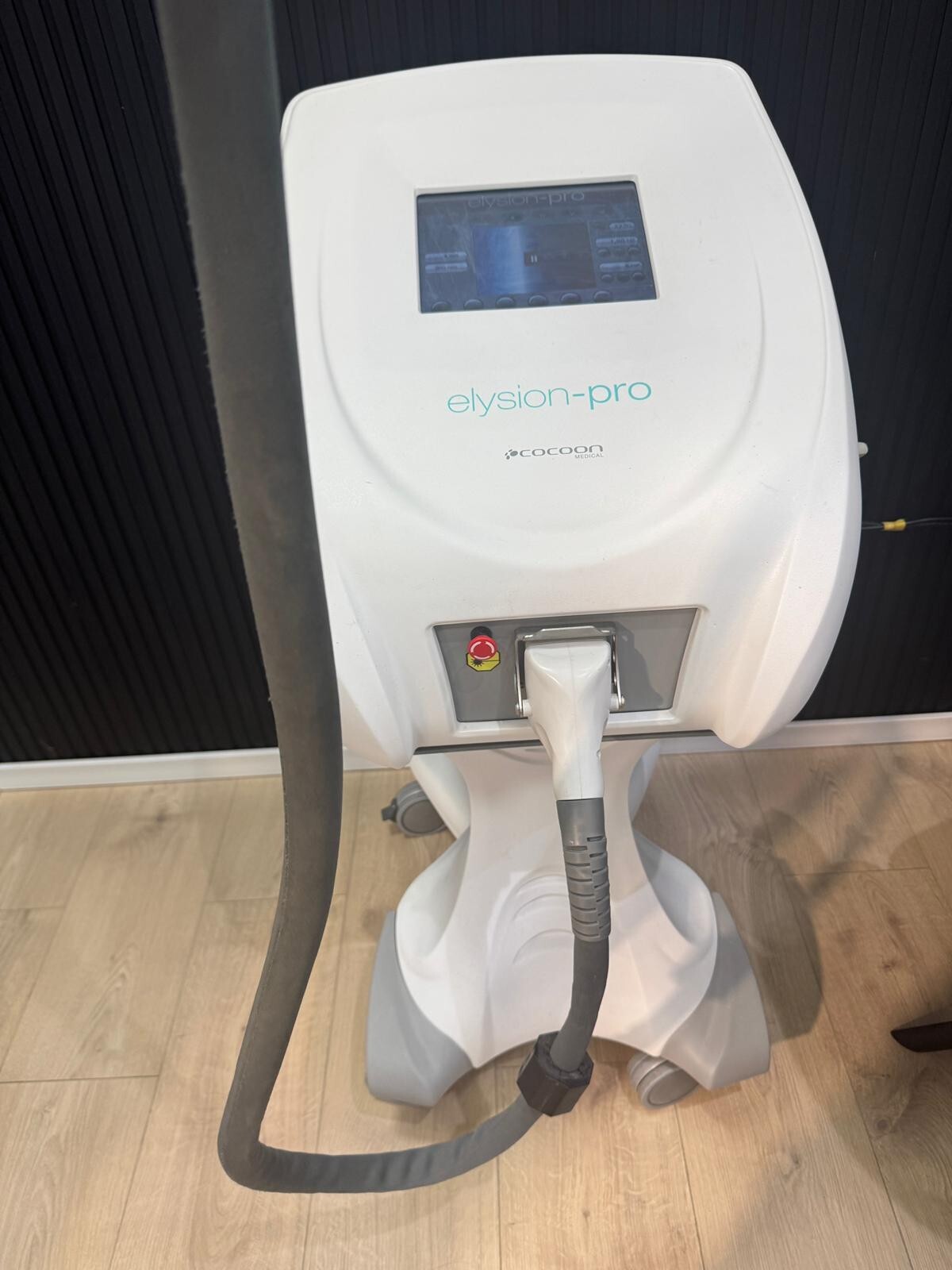

COCOON Medical ELYSION-PRO Diode Laser

High power, high fluence, and Ultra Short Pulse. It´s specially designed for spas, med spas, and laser hair removal centers with a high volume of patients. Suitable for all kinds of patients throughout the whole year.
Elysion-Pro is the best option for first-time lasers users. Its 3500W guarantees effectiveness, profitability, and the best equipment performance in the hair removal market.

Key Features

High power up to 3500W with all spots: 10×10 and 18×10 mm
Effectiveness in all areas (small and large).

USP: Ultrashort pulse technology (3ms) exclusive for hair removal.
European Medical Certificate: Tested and proved.

Upgrade Technology Programs.
810nm Wavelength

COCOON Medical ELYSION-PRO Diode Laser

Versatility lies at the core of the Elysion-Pro with two wavelengths (755nm and 810nm) for efficiency on all areas, whether small or large. The exclusive Ultra Short Pulse (USP) technology for hair removal offers ultra-short pulses of 3 ms, targeting the cells responsible for hair growth without heating the skin.

The Elysion-Pro is designed to work safely on all skin types. Its high power (2000W) ensures maximum safety and effectiveness, thus guaranteeing optimal cost-effectiveness. The pulse repetition frequency of 3Hz in static mode and 15Hz in dynamic mode, combined with different spot sizes (10×10 and 18×10), make the Elysion-Pro one of the fastest, safest, most powerful, and effective devices in the industry, including for residual hair from previous sessions.

The Elysion-Pro is equipped with three applicators, offering high power, strong energy, and Ultra Short Pulses suitable for all types of patients.

The “Crystal Freeze” safety system protects the skin while providing optimal comfort. It maintains a constant temperature of 5°C at the handpiece tip, regardless of usage duration, ambient temperature, or skin temperature. This prevents heating of the epidermis between pulses.

Two treatment modes are available:

DM Mode: The only dynamic mode on the market with ultra-short pulses of 3ms, minimizing pain and ensuring maximum effectiveness, even on fine hairs from the first session. It significantly reduces the sensation of pain for patients with dark phototypes, tanned skin, high pain sensitivity, initial sessions for men, high follicular density, and dark hairs.

ST Mode: This mode allows for rapid work by delivering large amounts of energy per pulse, even with short pulses. It offers maximum efficiency at high speed and is ideal for fine and residual hairs, small areas, and areas requiring high precision.

Includes

System
Hand Piece 810nm
Foot Pedal
Operator Glasses
Patient Glasses
Filling Cannula
Power Cable
Door Safety Sign
User’s Manual
2-Year Warranty

Technical Data

Type of Device: Diode LASER hair removal device
Type of LASER: Pulsed Diode
Max Peak Electrical Power: 9000W
Max Power: 160J, limited to 40 J/cm² maximum
Static Operation Mode: 1-2-3 Hz
Dynamic Operation Mode: 5-10-15 Hz
Pulse Length: 3-400 ms
Power Supply: Single-phase 100-240V
Frequency: 50-60Hz
Maximum Power: 1600W
Maximum Current: 13A
Dimensions (LxWxH): 650mm x 500mm x 450mm
LCD Screen: 10.4″ Touchscreen
Weight: 113 Lb
