Description

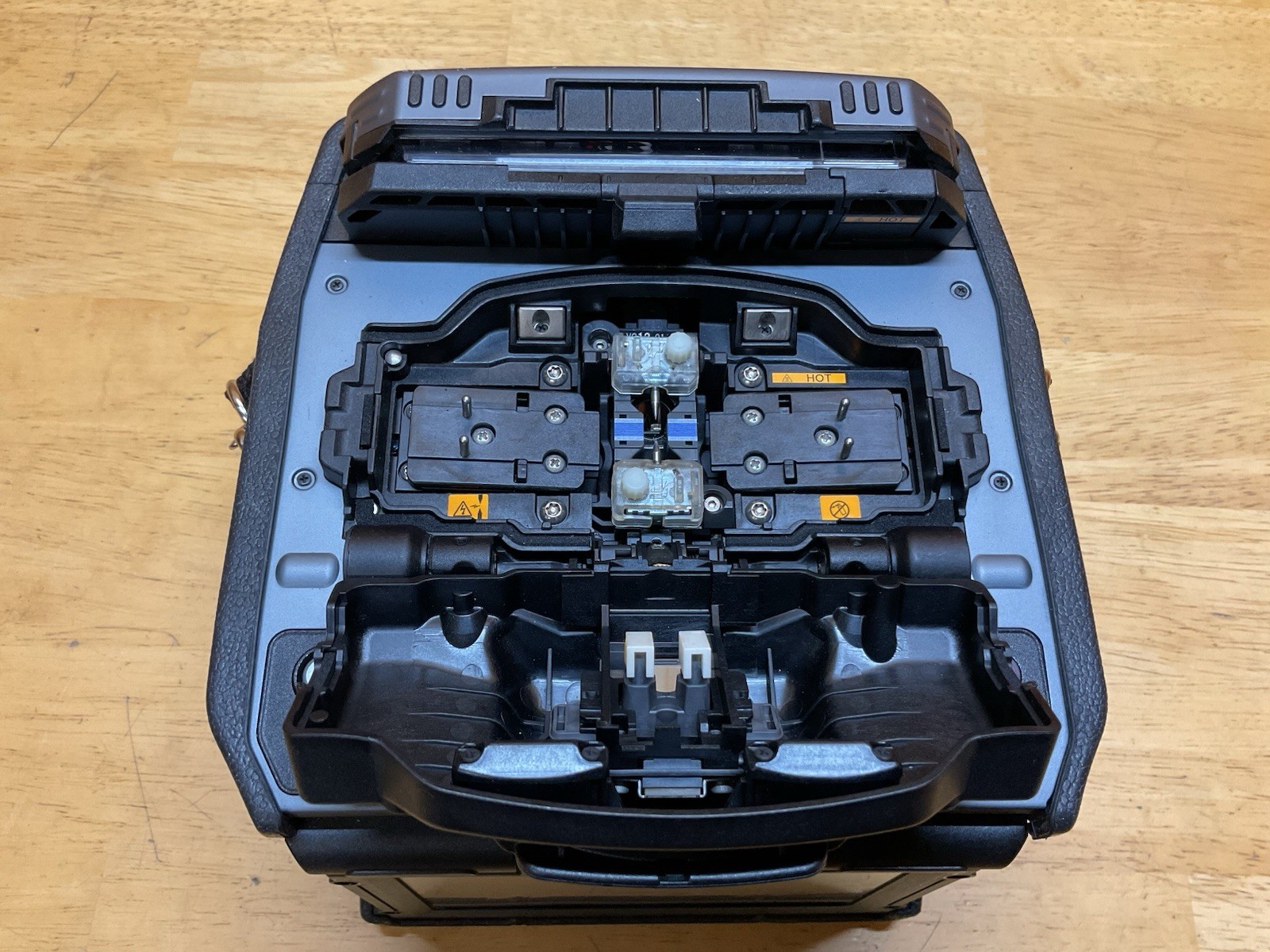

AFL Fujikura 90R Ribbon Fusion Splicer Kit

The AFL S017511 Fujikura 90R Fusion Splicer, with a fiber cleaver and thermal stripper, is designed for splicing ribbon fibers (up to 12). It features Bluetooth, field-replaceable V-grooves and self-cladding alignment with melting surface tension.

Automatic functions:

Splice mode selection by fiber type
Discharge power calibration
CT50 blade rotation
Wind protector (open/close)
Sheath clamp (open)
Heater lid (open/close)
Heater clamp (open/close).

Features:

• Cleaver tracking and upkeep with wireless communication
• Automated wind protector, tube heater and splice operation
• User replaceable v-grooves
• 200 μm and 250 μm SWR universal ribbon prep accessories
• Graphical User Interface with 5.0″ Touchscreen
• PC software and 90R manual downloaded from splicer
• Multi-function transit case with integrated workstation

Applications:

• • Data Center cable installation
  • High fiber count metro and campus networks
  • Long-haul network installs and repair
  • Trunk cable repair with Splice-on MPOs
  • Ribbon splicing high density cables with 200 μm loose fiber

The unit offers a 5″ LCD monitor with touch screen, magnification: 20x 12-ribbon to 60x single, 100 splice and 30 heat modes. The internal memory stores 20,000 splices and 100 images. Electrode life is 1500 splices.

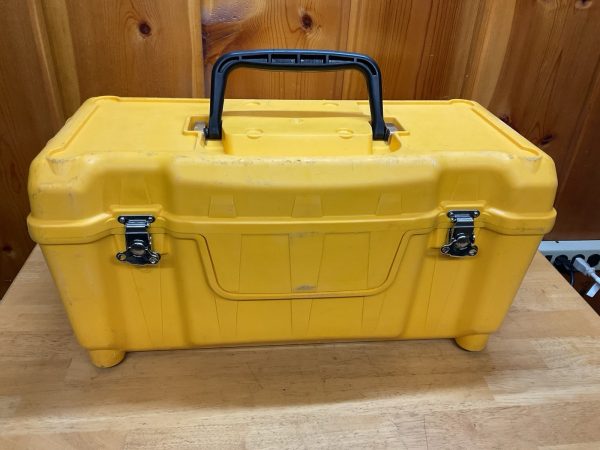

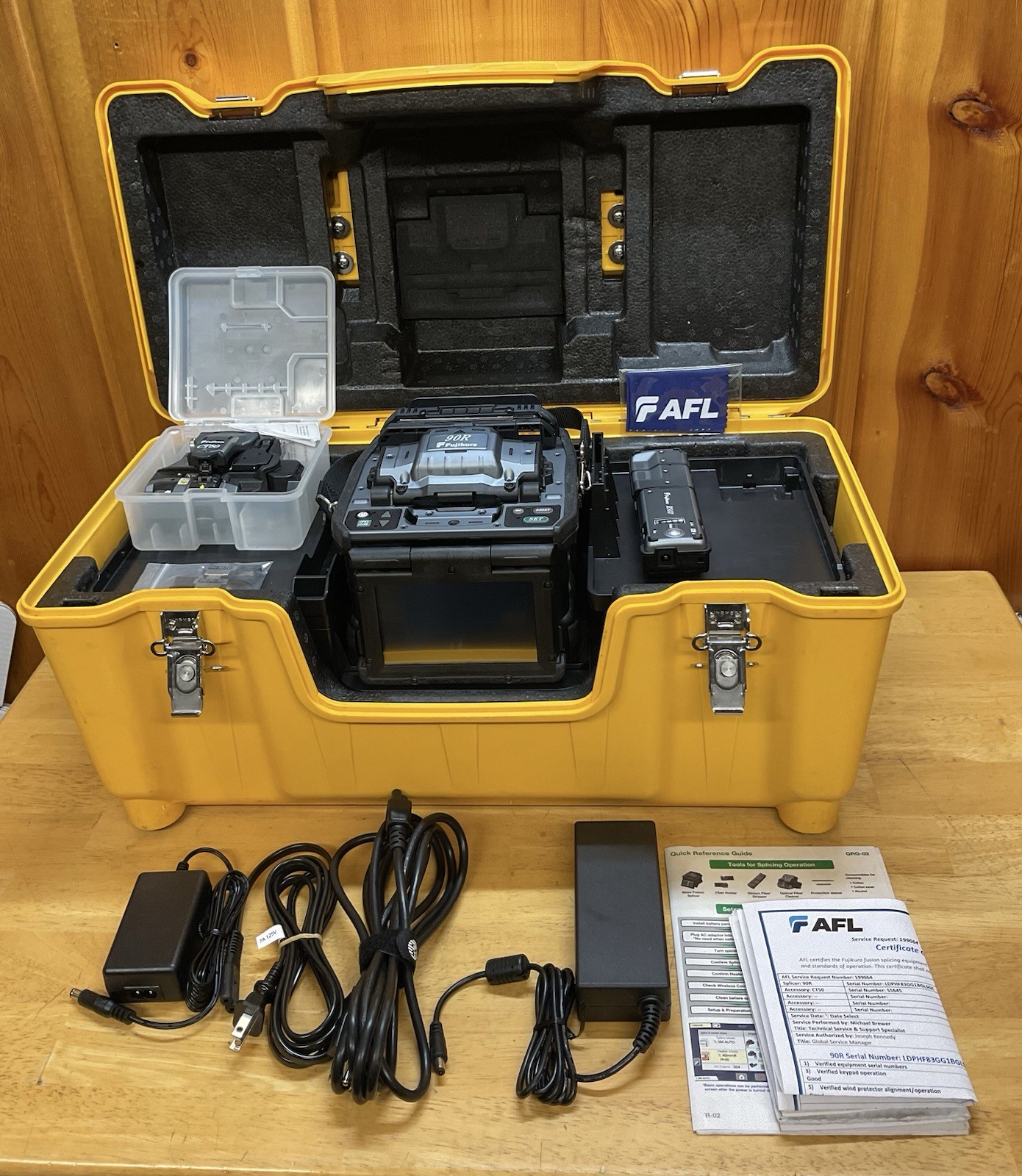

The 90R splicer comes with the CT50 cleaver, RS03 thermal stripper, AC adapter & cord, BTR-15 li-ion battery, spare electrodes with spare 12 fiber V-groove, FH-70-12 fiber holder, USB cable, alcohol dispenser, screwdriver, carry strap, quick reference guide, 2 tripod screws, video instruction, SS03 single fiber stripper (3 hole) and transit case.

The model 90R is a replacement for the 70R fusion splicer.

The unit offers a 5″ LCD monitor with touch screen, magnification: 20x 12-ribbon to 60x single, 100 splice and 30 heat modes. The internal memory stores 20,000 splices and 100 images. Electrode life is 1500 splices.
The AFL S017511 Fujikura 90R Fusion Splicer, with a fiber cleaver and thermal stripper, is designed for splicing ribbon fibers (up to 12). It features Bluetooth, field-replaceable V-grooves and self-cladding alignment with melting surface tension.
