Description

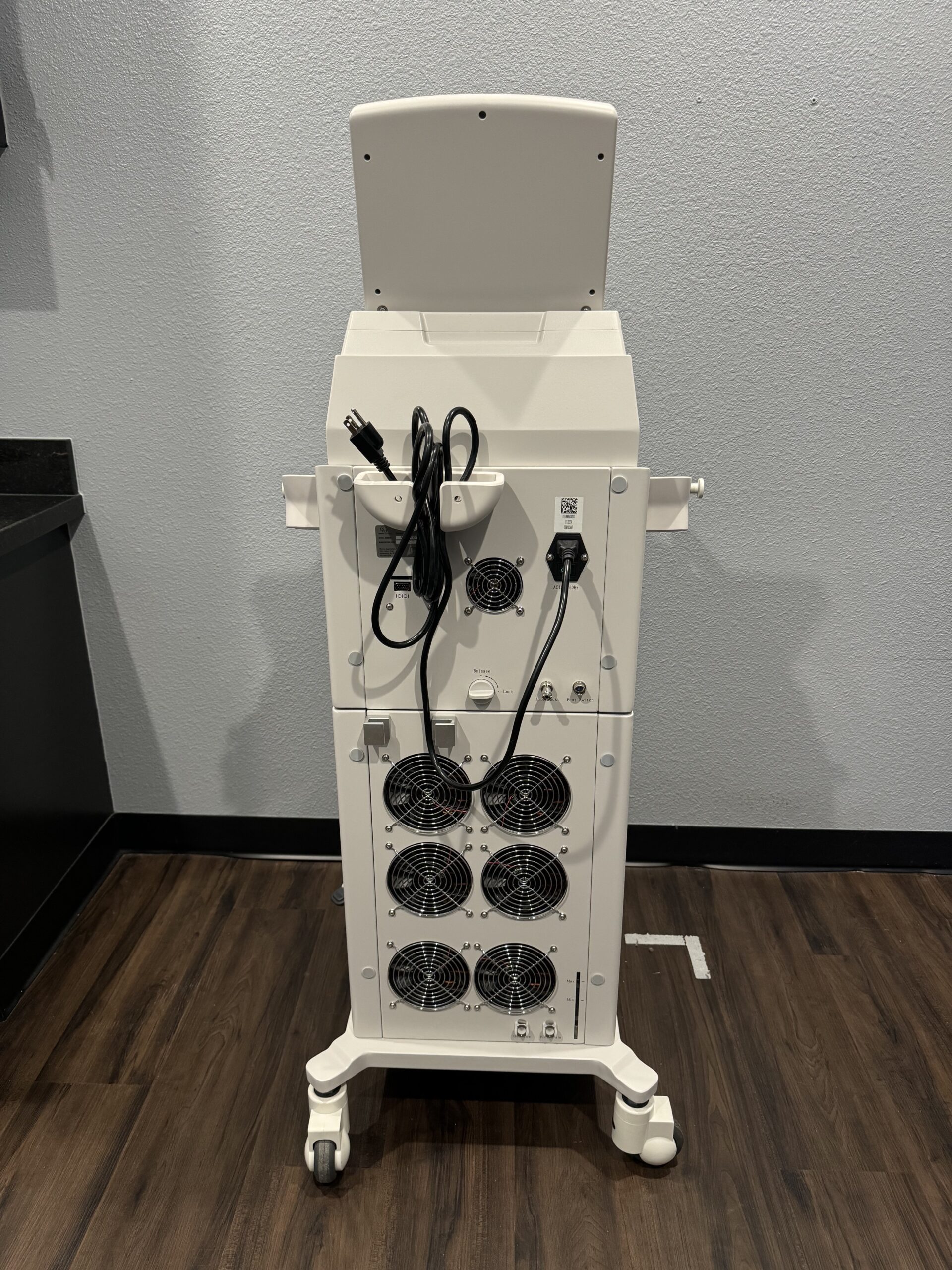

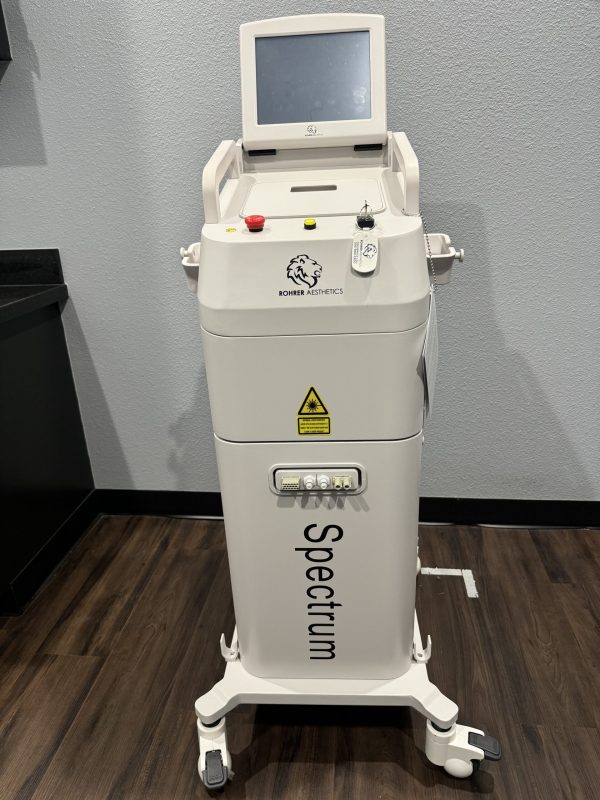

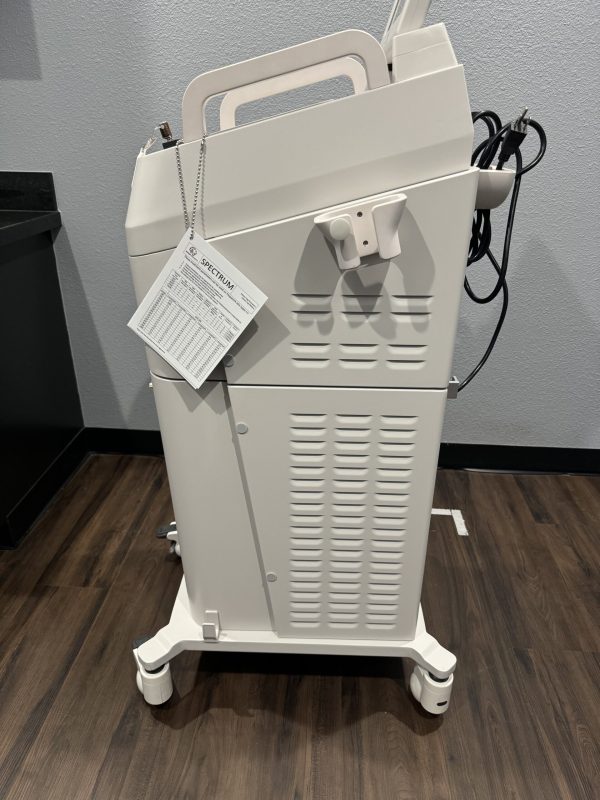

2023 Rohrer Spectrum Multi-Platform System with 2 Handpieces

Spectrum MANUFACTURER NOTES

WHY THE SPECTRUM?

The Spectrum is the ideal Laser/IPL system for sharing or for physicians with multiple locations. The system easily separates into two pieces and can be placed into the trunk or back of an SUV.

Features & Benefits:

• NO Consumables or Disposables

WHAT THE SPECTRUM INCLUDES

810-Diode | Hair Removal

The Spectrum is ideal for laser hair removal with a large spot size, a hertz rate capable of up to ten pulses per second, and built-in contact cooling.

Intense Pulsed Light

The intense pulsed light (IPL) has four filters that technicians can utilize for various non-abrasive procedures, including acne reduction, vascular and pigmented lesions removal, and hair reduction.

Q-Switched Yag/KTP | Tattoo Removal

The spectrum includes a laser tattoo removal device known as the Q-Switched Yag/KTP laser. The Q-switched Yag laser uses dual wavelengths (1064nm/532nm) to remove a vast range of tattoo pigments.

Long Pulsed Yag | Vascular Reduction

The Long Pulse Yag Laser reduces vascular lesions, commonly known as spider veins, by using energy to heat, damage, and collapse targeted blood vessels. Technicians can also utilize the Long Pulse Yag to remove different types of vascular lesions, including cherry angioma.

Erbium Yag | Skin Resurfacing

Erbium is a skin resurfacing procedure for the face, neck, chest, and hands to eliminate surface pigmentation and minimize mild to moderate fine lines and wrinkles. The Erbium treatment requires minimal downtime but helps patients achieve dramatic results.

WHAT OUR CLIENTS HAVE TO SAY

“I have purchased the Phoenix-15 and have nothing but praise for the device. When one looks at the cost, lack of consumables, the ability to treat hands, along with the reliability and dependability of all of Mark Rohrer’s products it was an easy choice to make. I highly recommend this device for anyone entering into the arena of fractionated CO2 laser skin resurfacing.”

IPL Handpiece Specifications

Wavelength: 450 to 1200 nm

Maximum Fluence: 5-40 J/cm2

Spot Size: 35 x 15 mm

Repetition Rate: 1 Pulse every 3 seconds

Cooling: Self-Contained Closed Loop, 0-5 degrees Celsius

Indicated Uses for 4 Filters:

650 nm (HR) for Hair Removal

540 nm (SR) Filter for Skin Rejuvenation

510 nm (VR) Filter for Vascular & Pigmented Lesions, Melanin, Seborrheic Keratosis, & Photo Damaged Skin Lesions

450 nm (AR) Filter for Acne & Atrophic Acne Scars

Erbium Yag Handpiece (2940 nm) Specifications

Wavelength: 2940 nm

Energy: Up to 1000 mJ (1 Joule)

Max Power: 2.4 Watts

Pulse Width: 300 microseconds

Beam Divergence: Collimated

Spot Size: 1.5 to 6 mm (with zoom lens)

Application: Laser skin resurfacing, skin ablation and coagulation, wrinkle and scar reduction

1064 Long Pulse Nd Yag Handpiece Specifications

Wavelength: 1064 nm

Energy: up to 18 Joules

Pulse Width: 3 – 10 ms

Spot Size: 1.5 & 3mm

Application: Removal of Vascular lesions, Including Cherry Angioma.

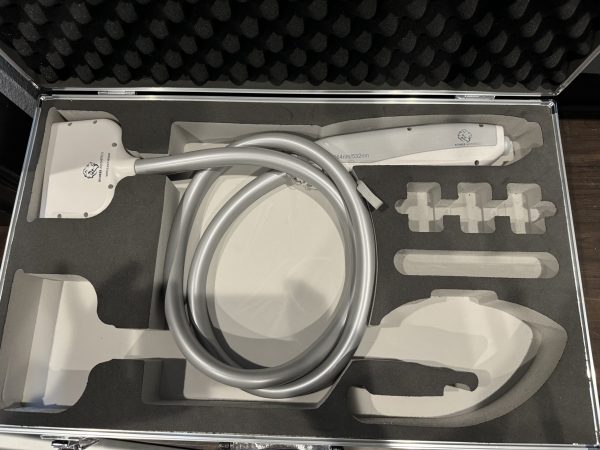

Q-Switched Handpiece Specifications

Wavelength: 1064 nm

Wavelength KTP Crystal 532nm Converter: 532 nm

Energy: Up to 1000 mJ

Maximum Fluence: 12 J/cm2

Spot Size: 1.5mm, 3mm & 4 mm (with zoom lens)

Pulse Width: 10 Nano-seconds

Repetition Rate (Pulse Rate): 1 to 5 Hz

Application: Tattoo Removal

810 Diode Handpiece Specifications

Wavelength: 810 nm

Spot Size:  12mm x 10 mm

Pulse Width:  Adjustabel up to 400ms

Pulse Rate:  0.5 – 10 Herz (pulses per second)

Energy Density:  2-120 J/cm2

Applications: Diode Hair Removal
